Water Meter

Water meters are part of our own production line in Wenzhou, China. They are widely used for residential billing, apartment sub-metering and industrial water measurement. Every meter is pressure-tested and checked before shipment.

Product Range

What Is a Multi-Jet Water Meter?

It is a velocity-type meter in which the water flows through several small jets around the measuring chamber, driving the impeller evenly from all sides. This design keeps good accuracy at both low and high flow rates, which is why multi-jet meters are the common choice for household and apartment billing.

Types We Produce

• Wet-type meter — the register is filled with water; simple structure and proven reliability for clean water.
• Dry-type meter — the dial stays dry and easy to read, with magnetic transmission between chamber and register.
• Hot water meter — for hot water lines up to 90°C.
• Vertical meter — for installation on vertical pipes.

Typical Applications

• Residential billing for houses and apartments
• Sub-metering inside buildings, hostels and rented rooms
• Water supply projects of utilities and property managers
• Small factories, schools and commercial buildings

Key Specifications

Type: multi-jet vane wheel water meter, wet or dry type
Nominal size: DN15 – DN25 (larger sizes on request)
Water temperature: 0–30°C cold water, up to 90°C hot water
Pressure: 1.0 MPa / 1.6 MPa
Body: brass, blue painted iron or nylon on request
Connection: threaded couplings included
Registers: digital roller register, readable from above

Versions Available

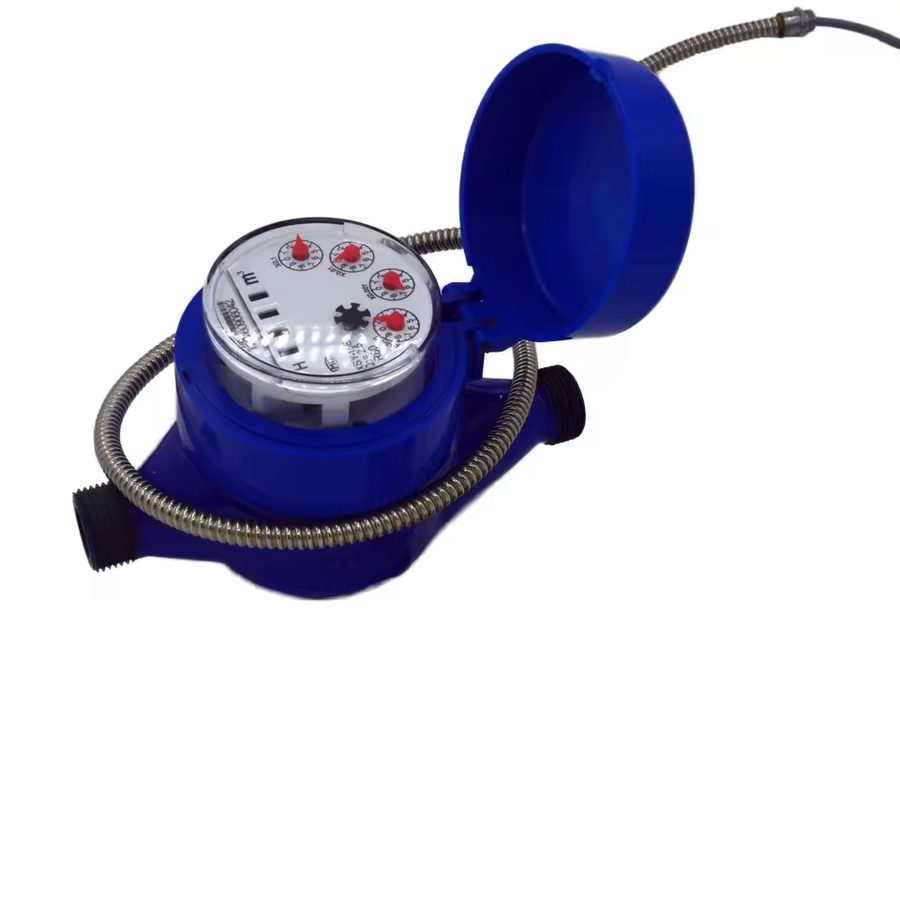

Wet-type and dry-type versions in brass or painted bodies are available from DN15 upward, with or without anti-tamper wire seal. Tell us the pipe size and the water temperature and we will confirm the right version and factory price.

More from Our Factory

Water meters are produced on the same line as our energy meters and electrical instruments — one factory, one quality standard, one shipment if you need a full package for your project.
